• Origin：China (Mainland)
• Trademark：SAN
• Model NO.：SANPPL-120G
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. SANPPL-120G Trademark SAN Origin China (Mainland) Production Capacity 100 Sets/Year

Product Description

Automatic Paper Corner Protector SANPPL-120G is one paper protector production line with speed of 50m/min.This line Can produce V, U and Flat type protector though changing moulds.Similar to Eberle in France.

Model	SANPPL-120G
L protector size(mm)	25-100 (can be symmetrical and assymetrical)
Thickness(mm)	Normally 3-6mm, special order for max thickness of 8mm
Applicable inner paper	360-600g/m2 fluting paper or  corrugating medium paper
Applicable surface paper	175-250gsm craft paper
Core diameter of paper roll	3" (76mm) (4" or other size must be confirmed when making order)
Max.Quantity of Layer	13
Max.Speed	50m/minfor length not smaller than 800mm.
Control system	PLC, servo motor, Touch screen (HIM) with automatic alarm and failure notice, easy for operation and adjustment. With output counting.
Paper stands	Suspended stands with hoist for inner paper paper.
Forming wheels	Chamber hanging type, easy to change moulds
Method to load paper roll	Load inner paper rolls by hoist (along with machine).Load surface paper roll by hydraulic manual car (buy by the buyer) which is also required to move jumbo paper roll.No need to stop machine when loading paper rolls.
Applicable paper roll diameter	Max.1300mm
Paper feeding and compounding	Step type with complex structure
Gluing system	Cascade type gluing system
Glue heating	Electrical heating with temperature control system
Glue feeding	Automatic feedingby diaphragm pump
Pressing adjustment	Pneumatic pressing  to protect paper and easier operation
Protector heating	Electrical heating
Cut method	Hydraulic cutting
Quantity of cutter	1
Moving of cutting head	Servo motor controlled by PLC
Min cut length	50cm
Cut tolerance	± 1mm
Stacker	Automatic stacking
Motor for forming section	Two motors with inverter, with high power, direct-connected reducing motor
Power supply	Motor power:20KW Protector heating power:6.5KW (normally for winter) Glue heating power:4.5KW (normally for winter)
Air supply	0.6Mpa, 0.1m3
Total weight(MT)	4.5
Dimension(m)	24.5× 2.3× 4
Operator	2-3 workers
Required container	One 40" container

Our service

One year guarantee for whole machine, all life follow-up service.

24 hours technical support by email.

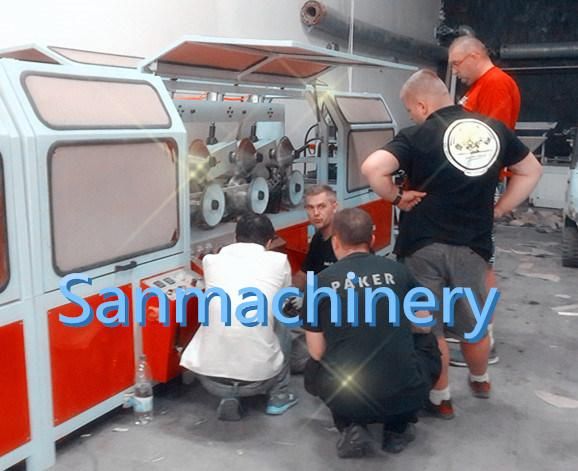

Technicians oversea set-up and workers training.

Use- friendly English for operation system.

Welcome to choose our machine.

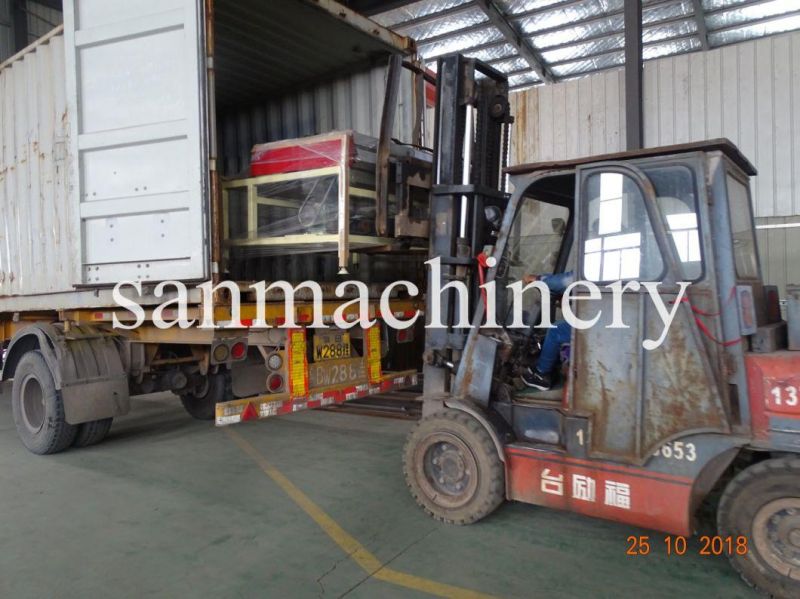

Packaging and delivery

Packaging Details:Film+ honeycomb board packing

Delivery Detail:Shipped in 30 days after payment

THE PACKING IS SEAWORTHY AND SAFE.
